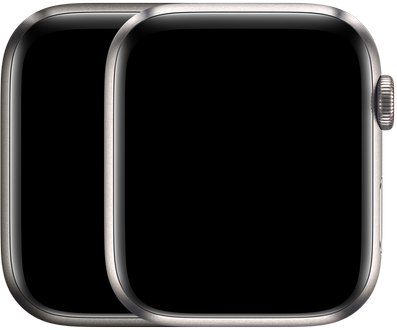

Apple Watch Edition Series 5 40mm
Available·Released Sep 21, 2019·Apple WatchOS 6·Smartwatch
Storage
32GB 1GB RAM
Your Status
Specifications
Connectivity
4GWi-Fi 4Bluetooth 5.0e-SIM
- Technology
- HSPA / LTE
- 3G bands
- UMTS 2100 / 1900 / 1700/2100 / 850 / 900 - HSUPA, HSUPA 5.8, HSDPA, HSPA+ 21.1, DC-HSDPA 42.2
- 4G bands
- LTE bands 1, 2, 3, 4, 5, 7, 8, 18, 19, 20, 25, 26, 39, 40, 41, 66 - 100/50, 150/50 data links
- Dual SIM
- SIM2 supports same bands as SIM1
- Announced
- 2019 Sep 10
- Status
- Available. Released 2019 Sep 21
- Dimensions
- 40 × 34 × 10.74 mm
- Weight
- 30.8 g
- Build
- Sapphire Glass
- SIM
- e-SIM
- Extras
- Haptic touch feedback, Tactile touch feedback
- Type
- AM-OLED display, 16.8M colors, 60 Hz
- Size
- 1.5 inches
- Resolution
- 324x390 pixels (~331 PPI density), ~54.8% screen-to-body ratio
- Protection
- Sapphire Glass
- Touch
- Pressure sensitive capacitive multi-touch screen
- OS
- Apple WatchOS 6
- Chipset
- Apple S5 APL1W82 T8006 7 nm
- CPU
- 1.59 GHz dual-core
- GPU
- Apple G11M
- Card slot
- No
- Internal
- 32GB 1GB RAM
- Camera Image Sensor
- No
- Focus
- No
- Secondary Camera Sensor
- No
- Loudspeaker
- mono
- 3.5mm jack
- No
- Audio features
- Voice speaker
- WLAN
- 802.11b, 802.11g, 802.11n
- Bluetooth
- Bluetooth 5.0
- Positioning
- A-GPS, QZSS
- Satellite details
- GLONASS (L1OF); Galileo (E1)
- NFC
- No
- USB
- No No
- Sensors
- AccelerometerGyroCompassAltimeterBarometerHR sensorL sensorStep counter
- Software
- Voice Command, Intelligent personal assistant
- Scroll Wheel
- 3-way rotary scroll wheel
- Type
- 245 mAh battery 0.94 Wh Li-ion
- Endurance
- 18.0 hours
- Nominal Battery Voltage
- 3.85 Volts
- Models
- Watch Series 5 40mm Global TD-LTE A2156
- Market
- AsiaAustraliaEuropeMiddle EastOceaniaSouth AmericaSoutheast AsiaWestern Europe
- Countries
- Armenia, Australia, Azerbaijan +64 more
- SAR (head)
- 0.330 W/kg
- SAR (body)
- 0.360 W/kg
- 2nd highest SAR (head)
- 0.300 W/kg
- 2nd highest SAR (body)
- 0.310 W/kg
About the Watch Edition Series 5 40mm
The Watch Edition Series 5 40mm was released in 2019 and comes with a 1.5 inch display, the Apple S5 APL1W82 T8006 chipset, 1 GB RAM and a 245 mAh battery. The full specification sheet is shown above, and you can compare it with other Apple devices or browse similar phones below.
Watch Edition Series 5 40mm questions and answers
- When was the Watch Edition Series 5 40mm released?
- The Watch Edition Series 5 40mm was released in September 2019.
- How big is the Watch Edition Series 5 40mm screen?
- The Watch Edition Series 5 40mm has a 1.5 inch display, with a 60 Hz refresh rate.
- Which chipset does the Watch Edition Series 5 40mm use?
- The Watch Edition Series 5 40mm uses the Apple S5 APL1W82 T8006 chipset.
- How much RAM and storage does the Watch Edition Series 5 40mm have?
- The Watch Edition Series 5 40mm comes with 1 GB RAM and storage options of 32 GB.
- How big is the Watch Edition Series 5 40mm battery?
- The Watch Edition Series 5 40mm has a 245 mAh battery.
- Which operating system does the Watch Edition Series 5 40mm run?
- The Watch Edition Series 5 40mm runs Apple WatchOS 6.
