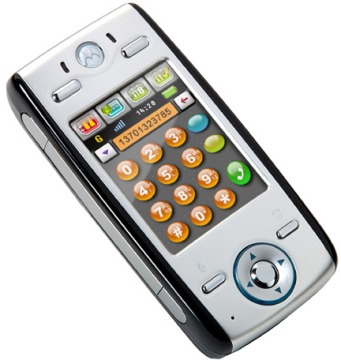

E680 E680g
Available·August 2004·Trolltech Qt for Embedded Linux + OpenEZX·Phone
Your Status
Key Specifications
Key Specifications
Display
2.5"
Color TN-TFT LCD display
240x320 · 161 PPI
Chipset
Intel XScale PXA270 (Bulverde)
single-core · 0.31 GHz
N/A
Trolltech Qt for Embedded Linux + OpenEZX
Released 2004 Sep
Memory
Storage
32 MiB
Camera System
Wide
0.3 MP
176x144 pixel
Battery
780 mAh battery
Connectivity
Wi-Fi
Bluetooth 1.1
USB 1.1
Build
133 g
2.12x4.29x0.81 inches
MicroSD
Full Specifications
Technology
GSM
2G bands
GSM 900 / 1800 / 1900 bands
Dual SIM
SIM2 supports same bands as SIM1
Status
Available. Released 2004 Sep
Dimensions
109 × 53.8 × 20.5 mm
Weight
133 g
Build
No
SIM
Mini-SIM (2FF)
Type
Color TN-TFT LCD display, 65536 colors
Size
2.5 inches
Resolution
240x320 pixels (~161 PPI density), ~32.5% screen-to-body ratio
Protection
No
Touch
Resistive screen
OS
Trolltech Qt for Embedded Linux + OpenEZX
Chipset
Intel XScale PXA270 (Bulverde)
CPU
0.31 GHz single-core
GPU
N/A
Card slot
microSD
Internal
32 MiB
Single
0.3 MP
Focus
No
Sensor
CMOS
Features
No flash, HDR, panorama
Video
176x144 pixel
Loudspeaker
stereo
3.5mm jack
No
FM radio
FM radio (88-108 MHz)
Audio features
Voice speaker, Speakerphone
Bluetooth
Bluetooth 1.1
NFC
No
USB
USB Mini-B (mini-USB) USB 1.1
Type
780 mAh battery Li-ion
