DevicesTCLTCL 302U

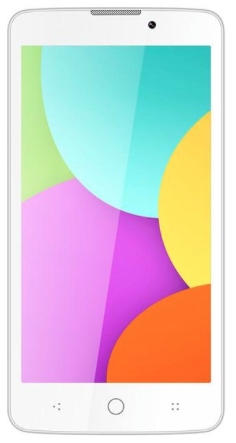

TCL 302U TD-LTE
TCL

TCL 302U

Available·December 2015·Android·Phone

Storage

16GB 1GB RAM

Your Status

Key Specifications

Key Specifications
Display

5"

Color TN-TFT LCD display

480x854 · 196 PPI

Chipset

MediaTek MT6735M

28 nm · quad-core · 1 GHz

ARM Mali-T720

Google Android 4.4.4 (KitKat)

Released 2015 Dec

Memory

RAM

1GB

LPDDR3 SDRAM

Storage

16GB

Camera System
Wide

5.0 MP

1280x720 pixel

Selfie

0.3 MP

640x480 pixel

Battery

1800 mAh battery

Connectivity

Wi-Fi 4 (n)

Bluetooth 4.0

USB 2.0

Build

147 g

2.85x5.60x0.39 inches

3.5mm JackMicroSD

Full Specifications

Technology
GSM / HSPA / LTE
2G bands
GSM 900 / 1800 / 1900
3G bands
UMTS 2100 / 900 - HSUPA, HSDPA, HSPA+ 21.1
4G bands
LTE bands 1, 3, 41 - 150/50 data links
Dual SIM
SIM2 supports same bands as SIM1
Status
Available. Released 2015 Dec
Dimensions
142.3 × 72.3 × 9.8 mm
Weight
147 g
Build
No
SIM
Yes
Type
Color TN-TFT LCD display, 16.8M colors
Size
5.0 inches
Resolution
480x854 pixels (~196 PPI density), ~67.0% screen-to-body ratio
Protection
No
Touch
Capacitive multi-touch screen
OS
Google Android 4.4.4 (KitKat)
Chipset
MediaTek MT6735M 28 nm
CPU
1 GHz quad-core
GPU
ARM Mali-T720
Card slot
microSD
Internal
16GB 1GB RAM
Single
5.0 MP, 1.0 x optical zoom
Focus
CD AF
Sensor
CMOS
Features
Macro mode, single LED flash, HDR, panorama
Video
1280x720 pixel
Single
0.3 MPsec. cam
Video
640x480 pixel
Loudspeaker
mono
3.5mm jack
Yes
FM radio
FM radio (88-108 MHz) with RDS
Audio features
Voice speaker, Speakerphone
WLAN
802.11b, 802.11g, 802.11n
Bluetooth
Bluetooth 4.0
Positioning
A-GPS, Geotagging, QuickGPS
NFC
No
USB
USB Micro-B (Micro-USB) USB 2.0
USB features
USB charging
Wireless features
Wi-Fi Tethering
Sensors
L sensor, P sensor
Type
1800 mAh battery Li-ion
Market
Asia, Southeast Asia
Countries
China
