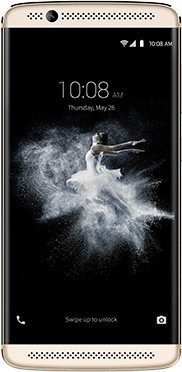

Axon 7 Mini
Available·September 2016·Android·Phone
Storage
32GB 3GB RAM
Your Status
Key Specifications
Key Specifications
Display
5.2"
AM-OLED display
1080x1920 · 424 PPI
Gorilla Glass 4
Chipset
Qualcomm Snapdragon 617 MSM8952
28 nm · octa-core · 1.5 GHz
Qualcomm Adreno 405
Google Android 6.0.1 (Marshmallow)
Released 2016 Oct
Memory
RAM
3GB
LPDDR3 SDRAM
Storage
32GB
Camera System
Wide
15.9 MP
f/1.90
2048x1536 pixel
Selfie
7.7 MP
2048x1536 pixel
Battery
2705 mAh battery
Connectivity
Wi-Fi 5 (ac)
Bluetooth 4.1
NFC
Nano-SIM
USB 2.0
Build
153 g
2.80x5.81x0.31 inches
Gorilla Glass 4
NFCNano-SIM3.5mm JackMicroSD
Full Specifications
Technology
GSM / HSPA / LTE
2G bands
GSM 850 / 900 / 1800 / 1900
3G bands
UMTS 1900 / 850 / 900 - HSUPA, HSDPA, HSPA+ 21.1
4G bands
LTE bands 1, 2, 3, 4, 5, 7, 8, 12, 17, 20, 38, 40, 41 - 150/50, 300/50 data links
Dual SIM
SIM2 supports same bands as SIM1
Status
Available. Released 2016 Oct
Dimensions
147.5 × 71 × 7.8 mm
Weight
153 g
Build
Gorilla Glass 4
SIM
Nano-SIM (4FF)
Type
AM-OLED display, 16.8M colors
Size
5.2 inches
Resolution
1080x1920 pixels (~424 PPI density), ~71.1% screen-to-body ratio
Protection
Gorilla Glass 4
Touch
Capacitive multi-touch screen
OS
Google Android 6.0.1 (Marshmallow)
Chipset
Qualcomm Snapdragon 617 MSM8952 28 nm
CPU
1.5 GHz octa-core
GPU
Qualcomm Adreno 405
Card slot
microSD
Internal
32GB 3GB RAM
Single
15.9 MP, f/1.90, 1.0 x optical zoom
Focus
PD AF
Sensor
CMOS
Features
EIS, HDR photo, Red-eye reduction, Macro mode, Panorama Photo, Face detection, Smile detection, Face retouch, dual LED flash
Video
2048x1536 pixel
Single
7.7 MPsec. cam
Features
Face detection, Face retouch
Video
2048x1536 pixel
Loudspeaker
stereo
3.5mm jack
Yes
Audio features
Voice speaker, Speakerphone, ANC, HD Voice, VoLTE
WLAN
802.11a, 802.11b, 802.11g, 802.11n, 802.11ac
Bluetooth
Bluetooth 4.1
Positioning
Simultaneous GPS, A-GPS, Geotagging, QuickGPS
Satellite details
GLONASS (L1OF); BeiDou (B1I BeiDou receiver)
NFC
No
USB
USB C reversible USB 2.0
USB features
USB charging, USB fast charging, USB Host, USB OTG 1.3, USB PD
Wireless features
Wi-Fi Direct, Wi-Fi Tethering
Sensors
FP sensor, L sensor, P sensor
Type
2705 mAh battery Li-ion polymer (LiPo)
Talk time
15.0 hours
Market
Asia, Europe
Countries
China, France, Germany, HK, UK
SAR (head)
0.416 W/kg
SAR (body)
0.441 W/kg
